The Akko Dracula and HMX Ash switches are both standard MX mechanical switches of the linear breed. They both feature POK stem material, 2 mm pre-travel, however, they come with different top housing (POK vs PA12 Nylon), bottom housing (PA vs PA66 Nylon), stem shape (dust-proof partial box vs standard), spring (21.8 mm vs single-stage extended KOS), actuation (35 g vs 40 g), bottom-out force (45 g vs 48 g), total travel (3.80 mm vs 3.60 mm). That said, they are mostly different. Let's check out this side-by-side specs rundawn with details, availability -- and even current prices -- to figure out which one fits you the best!

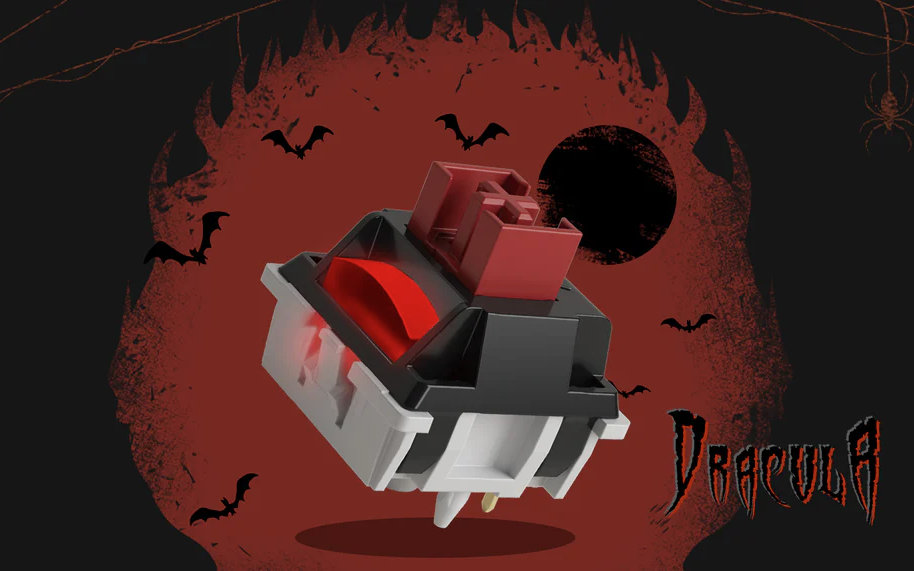

The Akko Dracula is a linear standard MX mechanical switch with POK top housing, PA bottom housing, and POK stem (dust-proof partial box shape). It features a 21.8 mm spring. The 35g actuation occurs at 2mm. The 45g bottom-out occurs at 3.80mm. Extra: Light diffuser. Factory lubing? Yes! Manufactured by Akko. | The HMX Ash is a linear standard MX mechanical switch with PA12 Nylon top housing, PA66 Nylon bottom housing, and POK stem (standard shape). It features a single-stage extended KOS spring. The 40g actuation occurs at 2mm. The 48g bottom-out occurs at 3.60mm. Factory lubing? Yes! Designed by Key of Life. Manufactured by HMX. |
|
|
| Name | Akko Dracula | HMX Ash |
|---|---|---|
| Type | linear | linear |
| Footprint | 5-pin | 5-pin |
| Top housing | POK | PA12 Nylon |
| Bottom housing | PA | PA66 Nylon |
| Stem material | POK | POK |
| Stem shape | dust-proof partial box | standard |
| Spring | 21.8 mm | single-stage extended KOS |
| Actuation | 35 g | 40 g |
| Bottom-out | 45 g | 48 g |
| Pre-travel | 2 mm | 2 mm |
| Total travel | 3.80 mm | 3.60 mm |
| Lube | Factory lubing? Yes! | Factory lubing? Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film. Everything else is dry. There is no lube in the bottom housing or anywhere near the stem pole. The chance that these get lube pooling issue is very small. |
| Designer | - | Key of Life |
| Manufacturer | Akko | HMX |
By tracking prices and in-stock status of 30+ well-known keyboard stores worldwide, we can state that the HMX Ash is available at a single shop at the moment, while the Akko Dracula can be found in multiple stores.
Clicking the links below take you to some notable keyboard shops offering Akko Dracula and HMX Ash switches. When accepted, the prices indicated already include the discount - use the KBDNEWS coupon code at checkout to claim your saving!
Prices, discounts, and stock status are checked regularly; however, changes since the last update cannot be ruled out. Everything here is for informational purposes only. Check the product pages for the latest prices!
Comments on Akko Dracula switches | Comments on HMX Ash switches |
The POK top case and stem in the Akko Dracula switch ensure an ultra-smooth and comfortable typing experience. Akko's initial use of POK material showcases its exceptional water and impact resistance over POM. While POK may undergo slight color changes with time, we've selected black and dark red hues for improved durability and aesthetics. Moreover, POK is regarded as a potentially more sustainable material than POM. The stem also includes an extra hole at the base for better airflow and smoother performance – Akko. | The HMX Ash linear switch is one of the most balanced HMX switches. The POK stem is perfect for creating a clean clacky sound profile without making it too loud. The PA12 top housing is one of the best, if not the best material for ultimate smoothness. The bottom housing is pure PA66 which is the most reliable and classic housing material you could see on a switch. Overall, Ash switches come with a great sound and great feel. It has the signature HMX features, and is a great option for anyone who enjoys nice sounding keyboard – Unikeys. |
