The Keygeek Intro and TTC X Pantheonkeys PT Black switches are both standard MX mechanical switches of the linear breed. They both feature standard stem shape, however, they come with different top housing (PA66 Nylon vs modified Nylon), bottom housing (PBT (+glass fiber) vs modified Nylon), stem material (U4 vs POM), spring (18 mm single-stage vs 19 mm single-stage), actuation (45 g vs 43 g), bottom-out force (58.5 g vs 50 g), total travel (3.80 mm vs 4 mm). That said, they are very different. Let's check out this side-by-side specs rundawn with details, availability -- and even current prices -- to figure out which one fits you the best!
The Keygeek Intro is a linear standard MX mechanical switch with PA66 Nylon top housing, PBT (+glass fiber) bottom housing, and U4 stem (standard shape). It features a 18 mm single-stage spring. The operating force is 45g. The 58.5g bottom-out occurs at 3.80mm. Factory lubing? Yes! Manufactured by Keygeek. | The TTC X Pantheonkeys PT Black is a linear standard MX mechanical switch with modified Nylon top housing, modified Nylon bottom housing, and POM stem (standard shape). It features a 19 mm single-stage spring. The 43g actuation occurs at 2mm. The 50g bottom-out occurs at 4mm. Factory lubing? Yes! Designed by Pantheonkeys. Manufactured by TTC. |
|
|
| Name | Keygeek Intro | TTC X Pantheonkeys PT Black |
|---|---|---|
| Type | linear | linear |
| Footprint | 5-pin | 5-pin |
| Top housing | PA66 Nylon | modified Nylon |
| Bottom housing | PBT (+glass fiber) | modified Nylon |
| Stem material | U4 | POM |
| Stem shape | standard | standard |
| Spring | 18 mm single-stage | 19 mm single-stage |
| Actuation | 45 g | 43 g |
| Bottom-out | 58.5 g | 50 g |
| Pre-travel | - mm | 2 mm |
| Total travel | 3.80 mm | 4 mm |
| Lube | Factory lubing? Yes! | Factory lubing? Yes! Light lubrication on the side walls of the stem to reduce leaf noise. |
| Designer | - | Pantheonkeys |
| Manufacturer | Keygeek | TTC |
By tracking prices and in-stock status of 30+ well-known keyboard stores worldwide, we can state that availability of the Keygeek Intro and TTC X Pantheonkeys PT Black switches is exactly the same:
Clicking the links below take you to some notable keyboard shops offering Keygeek Intro and TTC X Pantheonkeys PT Black switches. When accepted, the prices indicated already include the discount - use the KBDNEWS coupon code at checkout to claim your saving!
Prices, discounts, and stock status are checked regularly; however, changes since the last update cannot be ruled out. Everything here is for informational purposes only. Check the product pages for the latest prices!

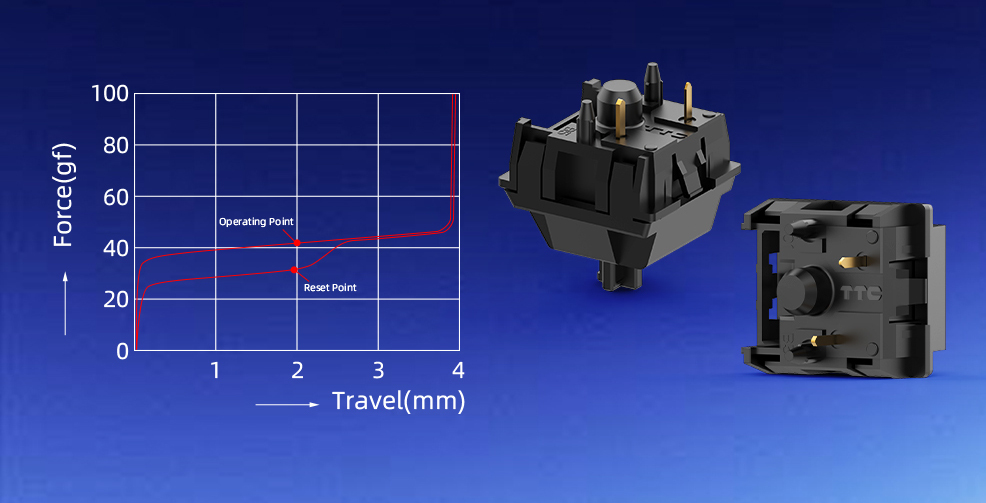

Keygeek Intro force curve | TTC X Pantheonkeys PT Black force curve |
No Keygeek Intro force curve available. |
|
Keygeek Intro sound test | TTC X Pantheonkeys PT Black sound test |
No TTC X Pantheonkeys PT Black sound test available. |
Comments on Keygeek Intro switches | Comments on TTC X Pantheonkeys PT Black switches |
No comments on Keygeek Intro switches. | PT Black, a new switch co-developed by TTC and Pantheonkeys, draws its design inspiration from the familiar and beloved Cherry MX Black switch. Our goal is to retain the classic feel while optimizing it to improve some common problems. The first focus is on smoothness and consistency: some Cherry Black switches can have a scratchy feel in their stock form, and there can be slight variations in feel between different batches. The PT Black features further optimization in structural tolerance control, resulting in higher overall smoothness and more stable consistency. The switch achieves a tight, solid feel without applying a film – TTC. |
