The XCJZ x JKDK Butterfly and Wuhai Jelly Purple switches are both standard MX mechanical switches of the silent linear breed. They both feature POM+TPU stem material, 37 g actuation, 2 mm pre-travel, however, they come with different top housing (PC vs PA66), bottom housing (PC vs PA66), stem shape (dust-proof vs dust-proof MX), spring (20 mm single-stage vs 20mm KOS), bottom-out force (42 g vs 52 g), total travel (3.70 mm vs 3.60 mm). That said, they are not too similar. Let's check out this side-by-side specs rundawn with details, availability -- and even current prices -- to figure out which one fits you the best!
The XCJZ x JKDK Butterfly is a silent linear standard MX mechanical switch with PC top housing, PC bottom housing, and POM+TPU stem (dust-proof shape). It features a 20 mm single-stage spring. The 37g actuation occurs at 2mm. The 42g bottom-out occurs at 3.70mm. Factory lubing? Yes! Designed by XCJZ x JKDK. Manufactured by Outemu. | The Wuhai Jelly Purple is a silent linear standard MX mechanical switch with PA66 top housing, PA66 bottom housing, and POM+TPU stem (dust-proof MX shape). It features a 20mm KOS spring. The 37g actuation occurs at 2mm. The 52g bottom-out occurs at 3.60mm. Extra: Light diffuser. Factory lubing? Yes! Manufactured by Wuhai. |
|
|
| Name | XCJZ x JKDK Butterfly | Wuhai Jelly Purple |
|---|---|---|
| Type | silent linear | silent linear |
| Footprint | 5-pin | 5-pin |
| Top housing | PC | PA66 |
| Bottom housing | PC | PA66 |
| Stem material | POM+TPU | POM+TPU |
| Stem shape | dust-proof | dust-proof MX |
| Spring | 20 mm single-stage | 20mm KOS |
| Actuation | 37 g | 37 g |
| Bottom-out | 42 g | 52 g |
| Pre-travel | 2 mm | 2 mm |
| Total travel | 3.70 mm | 3.60 mm |
| Lube | Factory lubing? Yes! | Factory lubing? Yes! |
| Designer | XCJZ x JKDK | - |
| Manufacturer | Outemu | Wuhai |
By tracking prices and in-stock status of 30+ well-known keyboard stores worldwide, we can state that the Wuhai Jelly Purple is available at a single shop at the moment, while the XCJZ x JKDK Butterfly can be found in multiple stores.
Clicking the links below take you to some notable keyboard shops offering XCJZ x JKDK Butterfly and Wuhai Jelly Purple switches. When accepted, the prices indicated already include the discount - use the KBDNEWS coupon code at checkout to claim your saving!
Prices, discounts, and stock status are checked regularly; however, changes since the last update cannot be ruled out. Everything here is for informational purposes only. Check the product pages for the latest prices!
Comments on XCJZ x JKDK Butterfly switches | Comments on Wuhai Jelly Purple switches |

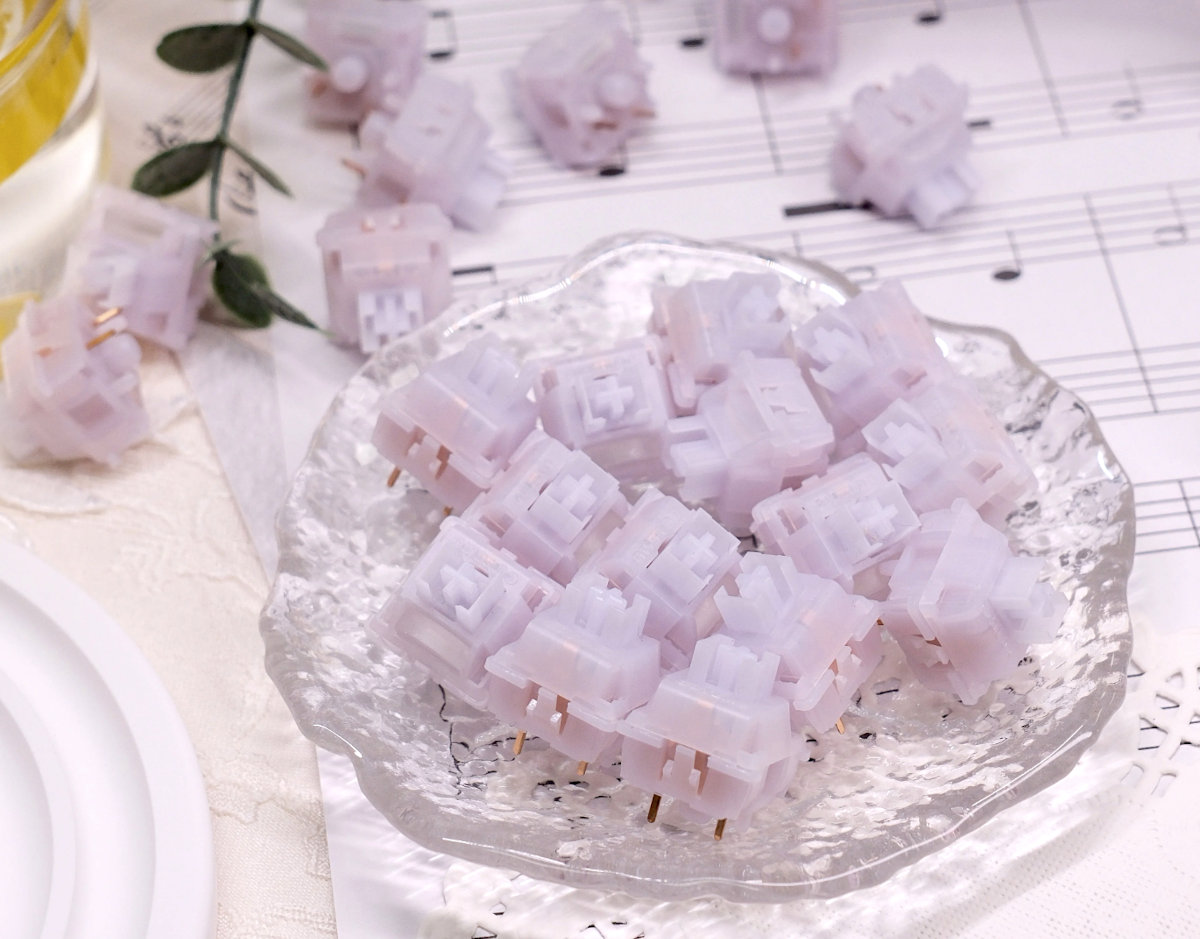

With the Butterfly Silent Linear Switch, Outemu partners with renowned designer XCJZ to deliver an elegant, near-silent switch that embodies both beauty and technical prowess. This XCJZ x JKDK Butterfly silent linear switch brings a unique typing experience as delicate as the wings of a butterfly. XCJZ, celebrated for designs like the Moyu Studio x XCJZ Snow Grape and the LICHICX Lucy switches, is known for balancing unique tactile feedback with refined aesthetics. The Butterfly switch, developed in collaboration with JKDK, captures this legacy, providing a typing feel that incorporates a gentle scratch sound profile, reminiscent of premium switches like Cherry Oranges and Nixies, adding a subtle, comforting feedback to each keystroke. With an actuation force of 37g ± 5g and a total travel of 3.7mm, the Butterfly switch offers a smooth, low-resistance experience ideal for silent environments. The pink dustproof stem, crafted from lengthened POM with TPU soft plastic, minimizes sound both on the downstroke and upstroke. Complemented by an opaque white top housing and muted grey bottom, this switch maintains a minimalist, tranquil aesthetic. Factory-lubed and equipped with a 20mm spring, each keystroke flows quietly and effortlessly, making it perfect for those who value a silent yet satisfying typing experience – thoccexchange. | No comments on Wuhai Jelly Purple switches. |
