Cherry MX2A Blue (PCB-mount RGB) vs Gateron Phantom Blue switch comparison

SummariesData sheetsPrices & OffersForce curveSound testComments

The Cherry MX2A Blue (PCB-mount RGB) and Gateron Phantom Blue switches are both standard MX mechanical switches of the clicky breed. They both feature Nylon bottom housing, POM stem material, standard stem shape, 50 g actuation, 60 g bottom-out force, 4 mm total travel, however, they come with different top housing (Nylon vs Ink), pre-travel (2.20 mm vs 2.30 mm). That said, they are nearly identical. Let's check out this side-by-side specs rundawn with details, availability -- and even current prices -- to figure out which one fits you the best!

This mechanical switch database is still a work in progress, there's still plenty to fix. Thanks for your understanding.

The Cherry MX2A Blue (PCB-mount RGB) is a clicky standard MX mechanical switch with Nylon top housing, Nylon bottom housing, and POM stem (standard shape). It features a stainless steel spring. The 50g actuation occurs at 2.20mm. The 60g bottom-out occurs at 4mm. Manufactured by Cherry.

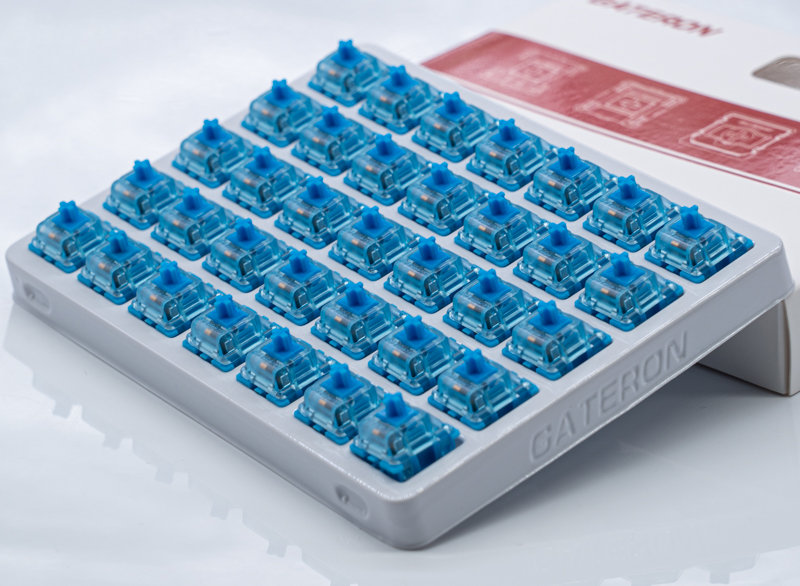

The Gateron Phantom Blue is a clicky standard MX mechanical switch with Ink top housing, Nylon bottom housing, and POM stem (standard shape). The 50g actuation occurs at 2.30mm. The 60g bottom-out occurs at 4mm. No factory lubing. Manufactured by Gateron.

Cherry MX2A Blue (PCB-mount RGB) vs Gateron Phantom Blue data sheets

NameCherry MX2A Blue (PCB-mount RGB)Gateron Phantom Blue
Typeclickyclicky
Footprint5-pin3-pin
Top housingNylonInk
Bottom housingNylonNylon
Stem materialPOMPOM
Stem shapestandardstandard
Springstainless steel-
Actuation50 g50 g
Bottom-out60 g60 g
Pre-travel2.20 mm2.30 mm
Total travel4 mm4 mm
LubeunknownNo factory lubing.
Designer--
ManufacturerCherryGateron

Prices & Offers

Where to buy Cherry MX2A Blue (PCB-mount RGB) and Gateron Phantom Blue switches?

By tracking prices and in-stock status of 30+ well-known keyboard stores worldwide, we can state that the Cherry MX2A Blue (PCB-mount RGB) is not available at the moment, while the Gateron Phantom Blue can be found in 1 stores.

Clicking the links below take you to some notable keyboard shops offering Cherry MX2A Blue (PCB-mount RGB) and Gateron Phantom Blue switches. When accepted, the prices indicated already include the discount - use the KBDNEWS coupon code at checkout to claim your saving!

Prices, discounts, and stock status are checked regularly; however, changes since the last update cannot be ruled out. Everything here is for informational purposes only. Check the product pages for the latest prices!

Force curves

Cherry MX2A Blue (PCB-mount RGB) force curve

Gateron Phantom Blue force curve

No Gateron Phantom Blue force curve available.

Sound tests

Cherry MX2A Blue (PCB-mount RGB) sound test

Gateron Phantom Blue sound test

No Gateron Phantom Blue sound test available.

Comments

Comments on Cherry MX2A Blue (PCB-mount RGB) switches

Comments on Gateron Phantom Blue switches

Immerse yourself in the next chapter of mechanical brilliance with the MX2A. Harness the power of the industry-leading Gold Cross Point Contact System, ensuring every keystroke is met with unrivaled precision. Delight in butter-smooth typing, enveloped by the harmony of optimized acoustics. This is more than just a switch; it's the pinnacle of MX performance – mechanicalkeyboards.com.

Brand-new oxidation-resistant gold contacts are adopted in the Leaf, which has better durability, improved oxidation resistance and vulcanization resistance, and further improved the service life of the keyboard switch – Gateron.
×
