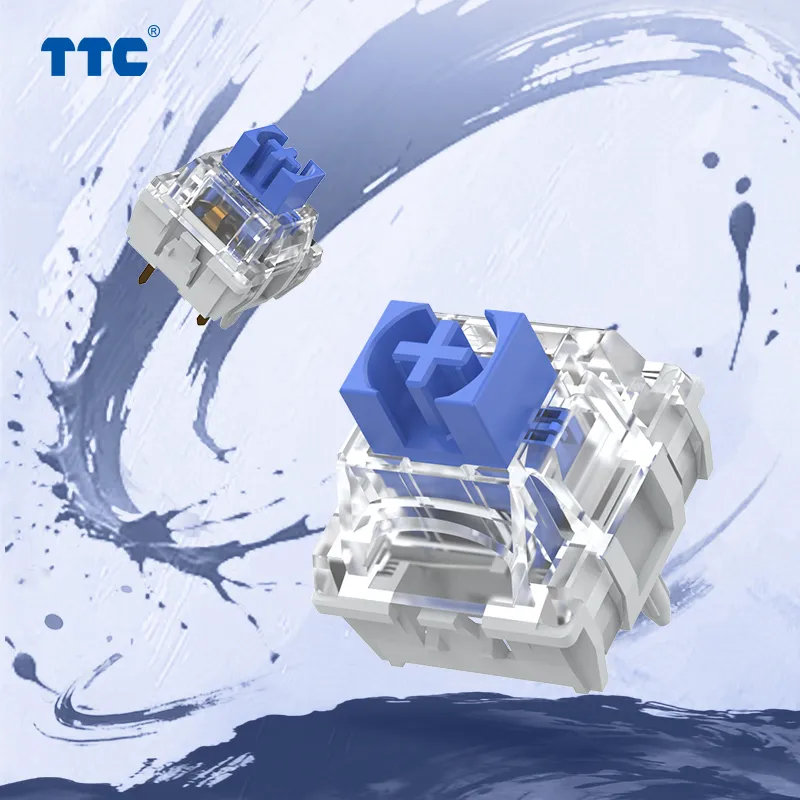

TTC Brother V2 switch
The TTC Brother V2 is a clicky mechanical switch with PC top housing, PC bottom housing, and POM stem (partial box). It features a 22 mm spring. The 42g actuation occurs at 1.60mm. Bottom-out is at 3.70mm. Clickbar and mute pad. Integrated light diffuser. Manufactured by TTC.
Where to buy TTC Brother V2 switches?
Here are some notable keyboard shops offering TTC Brother V2 switches. When available, the prices indicated already include the discount - use the KBDNEWS coupon code at checkout to claim your saving!
Currency:
| Store | Area | Offer | Price | Status | |
|---|---|---|---|---|---|
| TTCswitch | CN | 6.63 USD / 15 pcs 5% off, KBDNEWS | 0.44 USD | buy |
Prices, discounts, and stock status are checked regularly; however, changes since the last update cannot be ruled out. Everything here is for informational purposes only. Check the product pages for the latest prices!

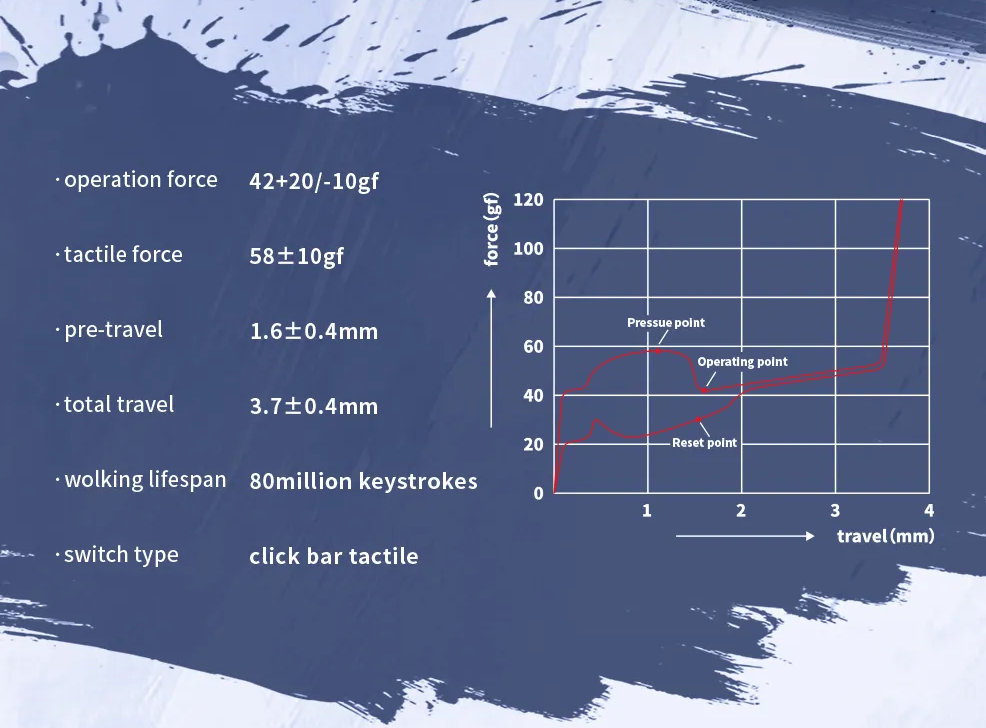

TTC Brother V2 force curve
TTC Brother V2 data sheet
| Name | TTC Brother V2 |
|---|---|
| Type | clicky |
| Footprint | 5-pin |
| Top housing | PC |
| Bottom housing | PC |
| Stem | POM partial box |
| Spring | 22 mm |
| Actuation | 42 g |
| Bottom-out | - g |
| Pre-travel | 1.60 mm |
| Total travel | 3.70 mm |
| Lube | unknown |
| Designer | unknown |
| Manufacturer | TTC |
TTC Brother V2 alternatives
Here are some notable alternatives to the TTC Brother V2, our reference switch. Competitors with comparable specs across parameters like switch type, housing material, actuation and bottom-out forces and travel distances — even color. Not perfect matches but the closest results in order of similarity.
| Sim. | Similar switches | Comparison | ||
|---|---|---|---|---|
| 89% | Kailh Box Jellyfish PRO Bixia clicky, 5-pin, PC/PC/PC, 47/0gF, 1.8/3.3mm | Compare | ||
| 83% | Chosfox x Kailh Arctic Fox clicky, 5-pin, PC/PC/POM, 52/53gF, 1.7/3.6mm | Compare | ||
| 82% | Akko Creamy Cyan clicky, 5-pin, PC/PC/POM, 50/65gF, 2.0/4.0mm | Compare | ||
| 82% | Kailh BOX V2 White (PCB mount) clicky, 5-pin, PC/Nylon/POM, 45/55gF, 1.8/3.6mm | Compare | ||
| 82% | Greetech Blue clicky, 5-pin, //, 55/0gF, 0.0/3.8mm | Compare | ||
| 82% | Kailh BOX Crystal Jade clicky, 5-pin, PC/PC/POM, 55/60gF, 1.8/3.6mm | Compare | ||
| 81% | Gateron Melodic clicky, 5-pin, PC/Nylon/POM, 60/0gF, 2.0/4.0mm | Compare | ||
| 80% | Gateron Harmonic clicky, 5-pin, PC/PA66 Nylon/POM, 65/0gF, 2.0/4.0mm | Compare | ||
To recap: we were looking for clicky mechanical switches possibly with PC top housing, PC bottom housing, and POM stem (partial box). The 42g actuation occuring at 1.60mm. Bottom-out being about 3.70mm. Clickbar and mute pad. Integrated light diffuser. — similar to the TTC Brother V2.
