6x5 ortholinear keyboard

An open-source 6x5 ortho board by derEchteJan.

KBD.news
Published July 6, 2025

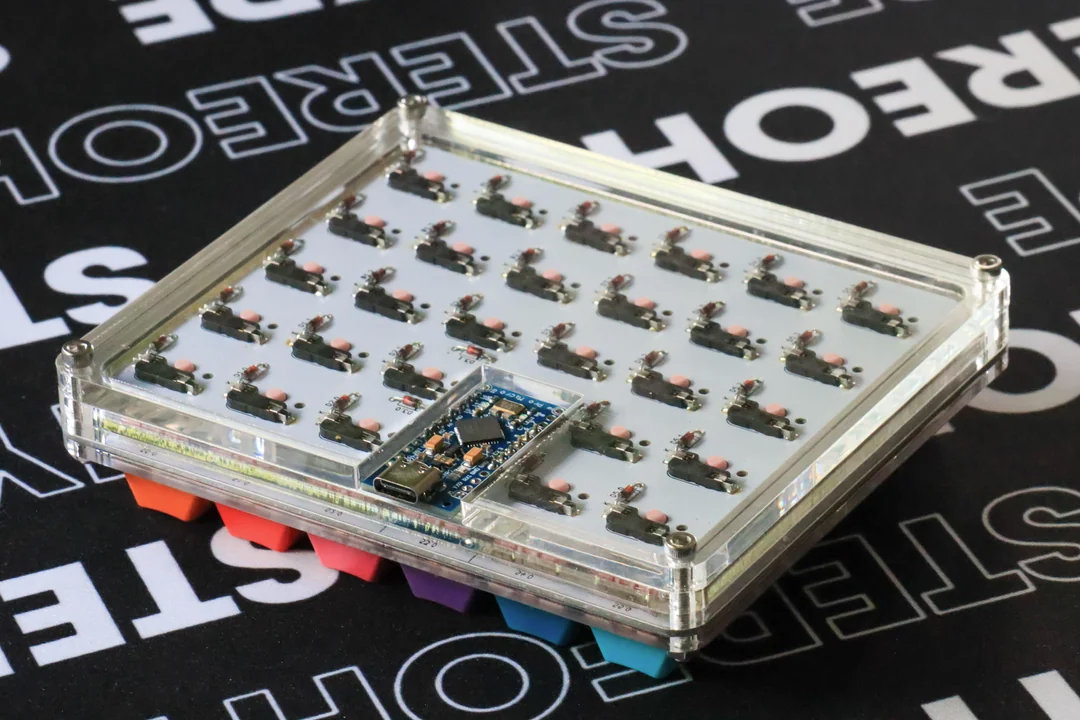

This noname 6x5 hotswap ortholinear keyboard was shared by theEchteJan aka abmausen.

Works well as a gaming macropad, with a centered typing board of choice in the middle. Have been using it for a year now, and like it a lot this way – abmausen.

Specs

• 30 keys (6x5 ortho)
• MX, hotswap
• Pro Micro footprint
• layered acrylic case
• QMK firmware

Resources

• https://github.com/derEchteJan/keyboards/tree/main/6x5-ortho-v1

Published on Sun 6th Jul 2025. Featured in KBD #194 (source).
