K02 - Sweeping the Sweep

A redesign of the Sweep: K02 by Lu Immich.

KBD.news
Published December 19, 2024
Supported by readers like Cyboard, drudru, and Penk Chen. Join them now to keep kbd.news free.

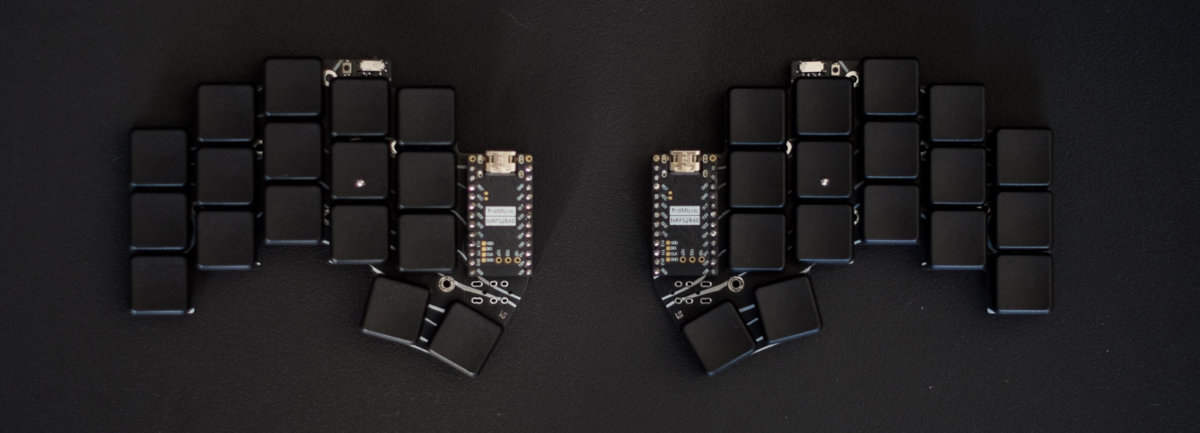

The K02 by Lu Immich aka anothermimich/kynikoi_ is a partial redesign of the Ferris Sweep 2 half-swept. In other words this is a: 34-key diodeless Choc-spaced low-pro split with a new PCB outline, silk art, etc.

After seeing the Ferris Sweep for the first time I've fallen in love, but as a designer I cannot accept the things the way they are. So I've done some experimentation with it – kynikoi.

The silk art is the work of the Brazilian artist Aline Dal Pont: Woodcut transposed to screen printing.

Pic:

Specs

  • 34 keys

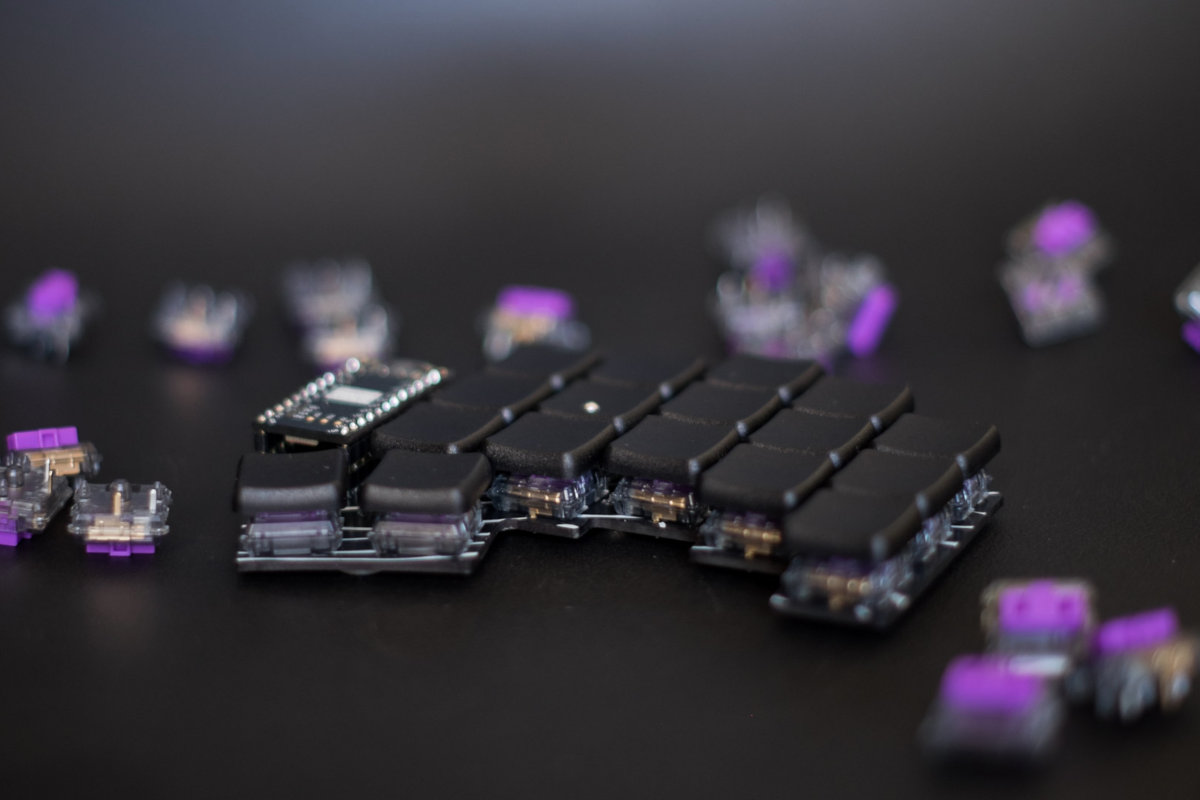

  • low-pro Choc V1, soldered, Choc spacing (17,5mm x 16,5mm)
  • diodeless
  • reversible PCB
  • tenting puck support
  • wireless and wired capable

Pic:

Changes

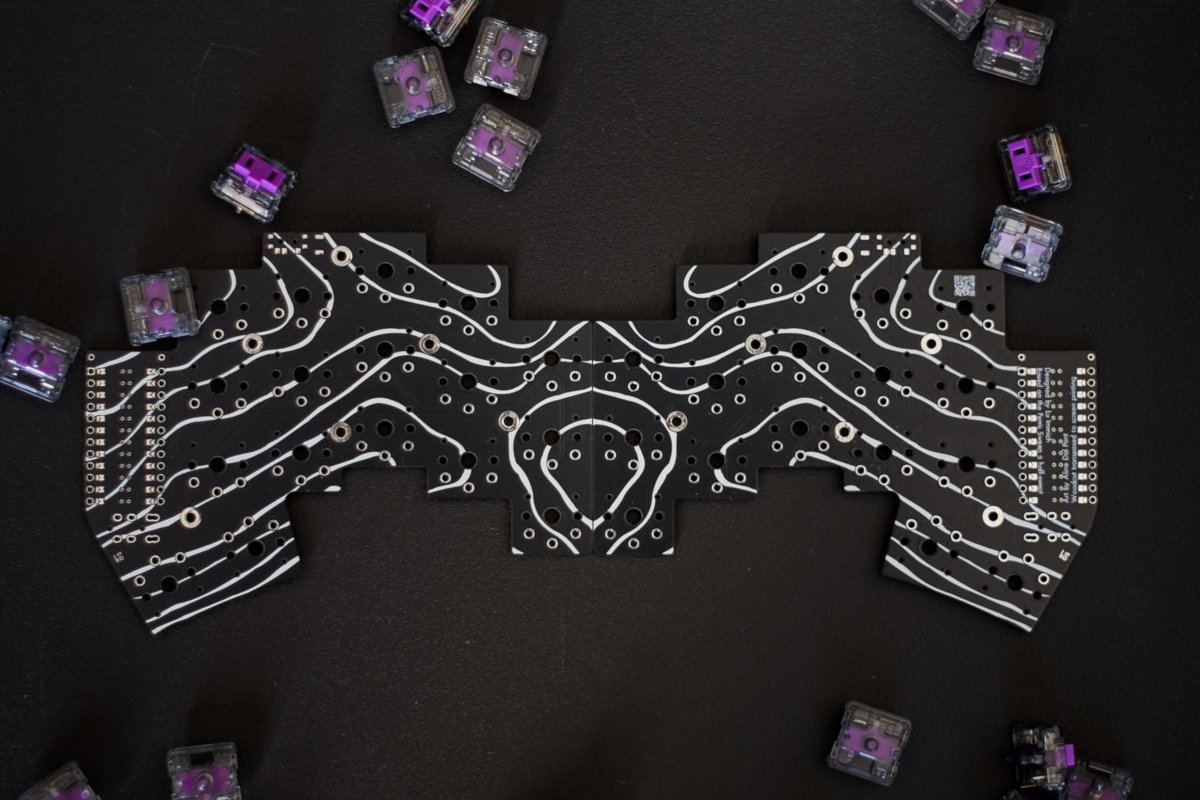

  • PCB overall form
  • support screw holes added
  • teardrop on solder joints added
  • reset and power switch repositioned
  • assembly manual done
  • alternative version with USB-C instead of TRRS

Pic:

Resources
