Vanguard Keyboard Outsider

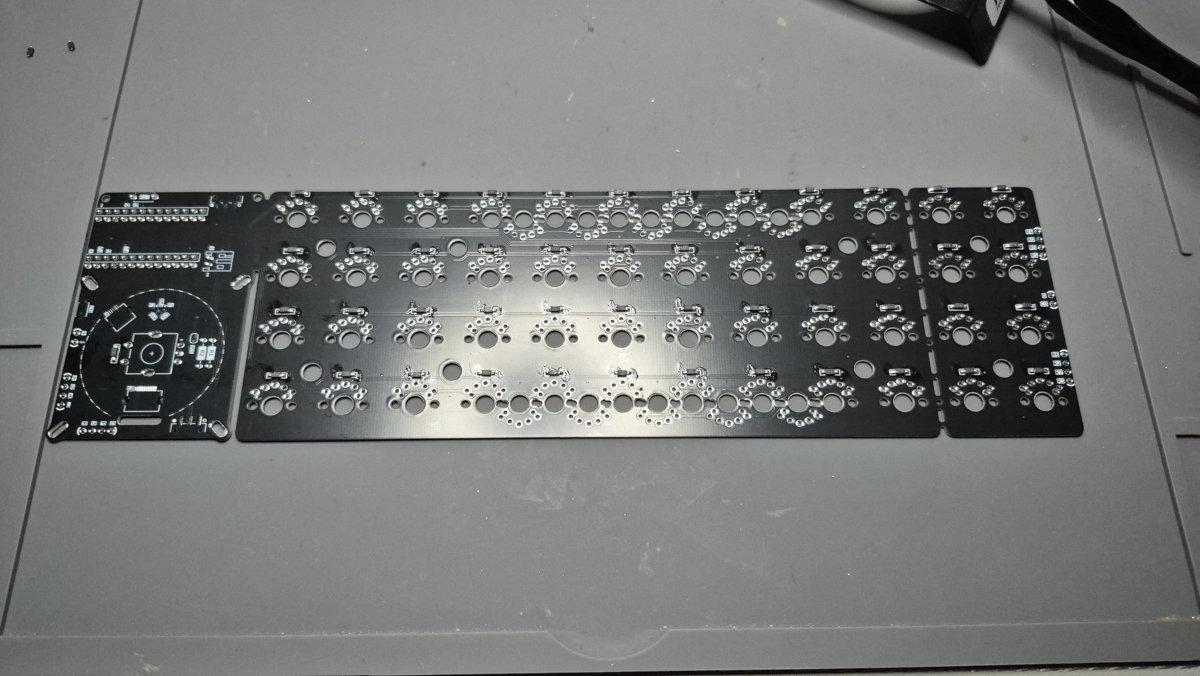

DreaM117er's Vanguard Keyboard Outsider is a modular ortholinear board, supporting various trackpads and encoders.
Published May 14, 2026
Creators! Feel free to tip me off about your keyboard related projects to bring them to 150,000 readers!
The Vanguard Keyboard Outsider, released by DreaM117er, is a modular ortholinear board supporting both QMK/Vial and ZMK, plus various trackpads and encoders.
The "Vanguard Series" is a branch point I personally developed based on the Explorer Keyboard Blank architecture. This is because, in the design of Blank, I "modularized" the keyboard's MCU area, allowing its trackpad and ProMicro MCU module to be completely reused in subsequent works – DreaM117er.
Features
- 40-49 keys (10-12x4 ortho with many layout variations)
- MX or Choc switches (also GLP with some PCB variants), soldered
- break-off two-column part (4x10 vs 4x12)
- Pro Micro footprint (ATMega32U4, RP2040, nRF52840)
- trackpad support (TPS43, TM040040) – QMK only
- encoder support (EC-11, EC-12)
Resources
Published on Thu 14th May 2026. Featured in KBD #211 (source).
