Wingman

An ultra low-profile monoblock split keyboard using PG1316S switches: Wingman by vuoz.

KBD.news
Published August 4, 2025
This blog is powered by 54 readers while read by 150,000. Donate like BeaverKeys, barraGOUDA, and sungo!

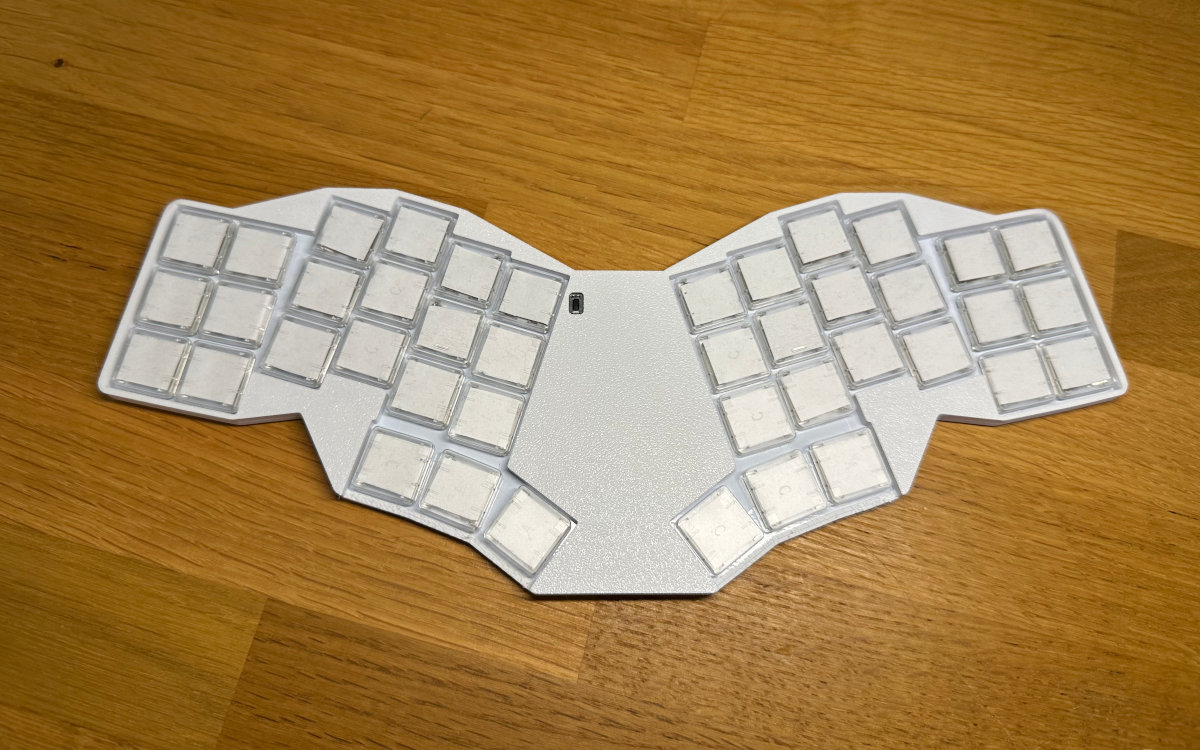

The Wingman is an ultra low-profile unibody split keyboard, shared by eqlair/vuoz, featuring PG1316S switches.

This board can be 100% hand soldered with a normal soldering iron. No hot plate required. The custom footprint makes soldering the switches quite managable, compared to hot plate soldering the switches to smd pads – vuoz.

Only 6 mm thick. 1 mm was sacrificed to add a backplate to cover the backside of the PCB.

Features

  • 42 keys (6x3+3)
  • ULP Kailh PG1316S switches
  • wireless via nice!nano
  • 3D-printed case
  • 6 mm thickness
  • ZMK firmware

Resources
