Ayush's keyboard
Ayush Kumar created this open-source 75%-ish board, driven by a Pi Pico.
Published July 7, 2026
Out of 150,000 readers, only 54 make this blog possible. Will you be one of them?

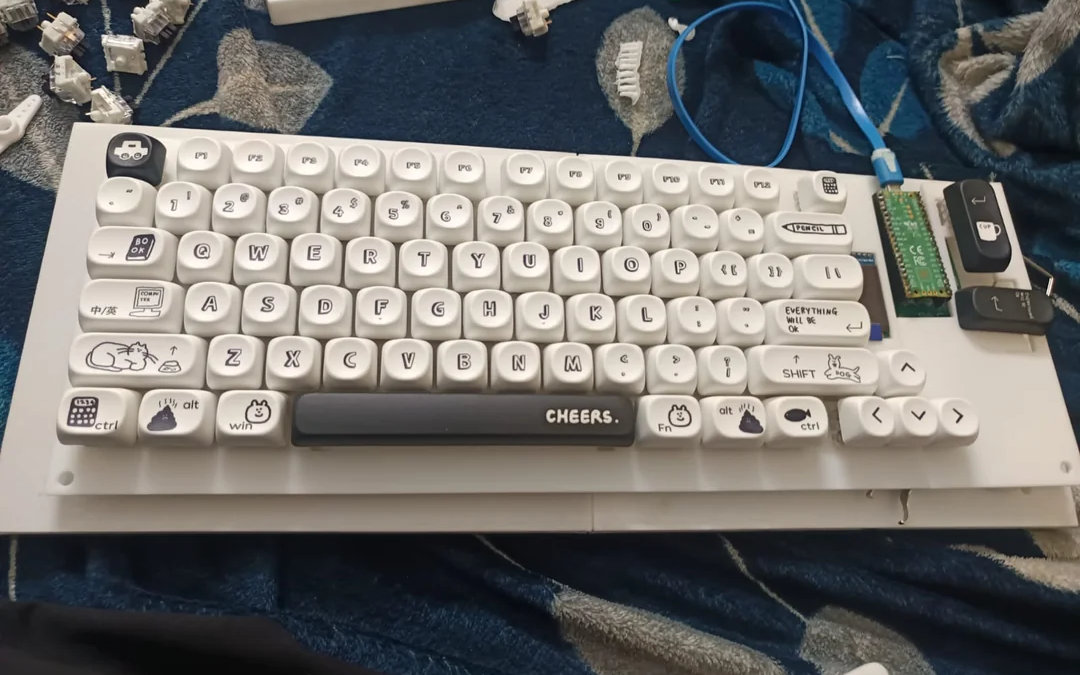

This 75%-ish noname open-source keyboard was shared by Ayush Kumar. It features a displays and rotary encoder, driven by a Pi Pico.
I designed this device in order to get some practical experience in hardware design, PCB manufacturing, and embedded systems programming. Instead of using an off-the-shelf keyboard design, I aimed at learning all the steps required to manufacture a custom keyboard – Ayush.
Specs
- 80 keys
- MX switches, soldered
- Raspberry Pi Pico controller
- EC11 rotary encoder
- display
Resources
Published on Tue 7th Jul 2026. Featured in KBD #214 (source).
