Levels54

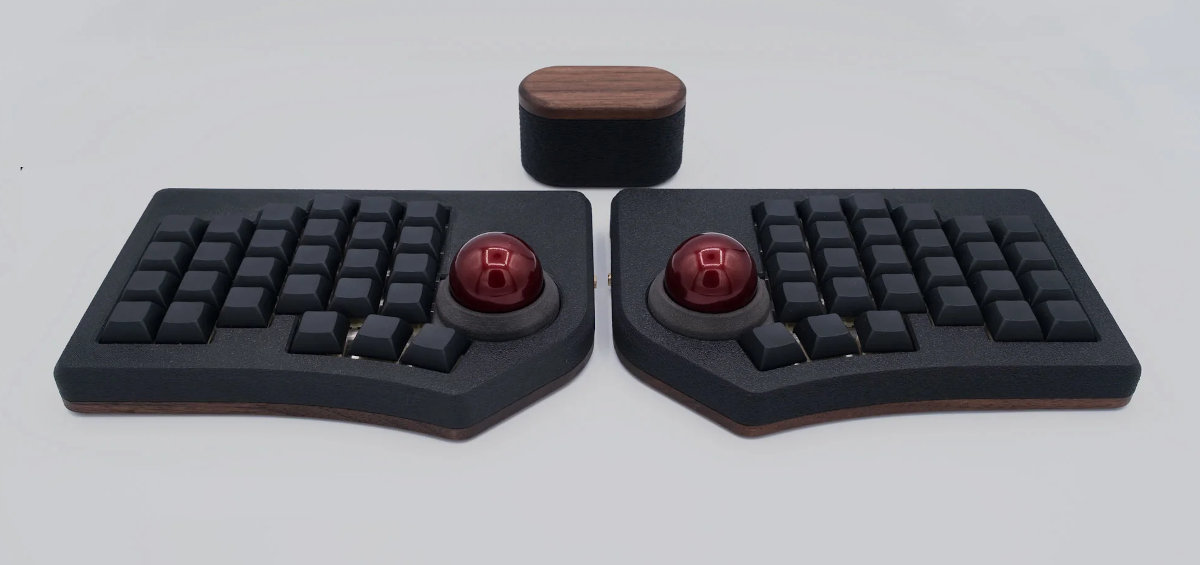

The Levels54, a dual-trackball wireless split keyboard sold by ergokeyboards.com, is now fully open source.
Published May 7, 2026
Creators! Feel free to tip me off about your keyboard related projects to bring them to 150,000 readers.

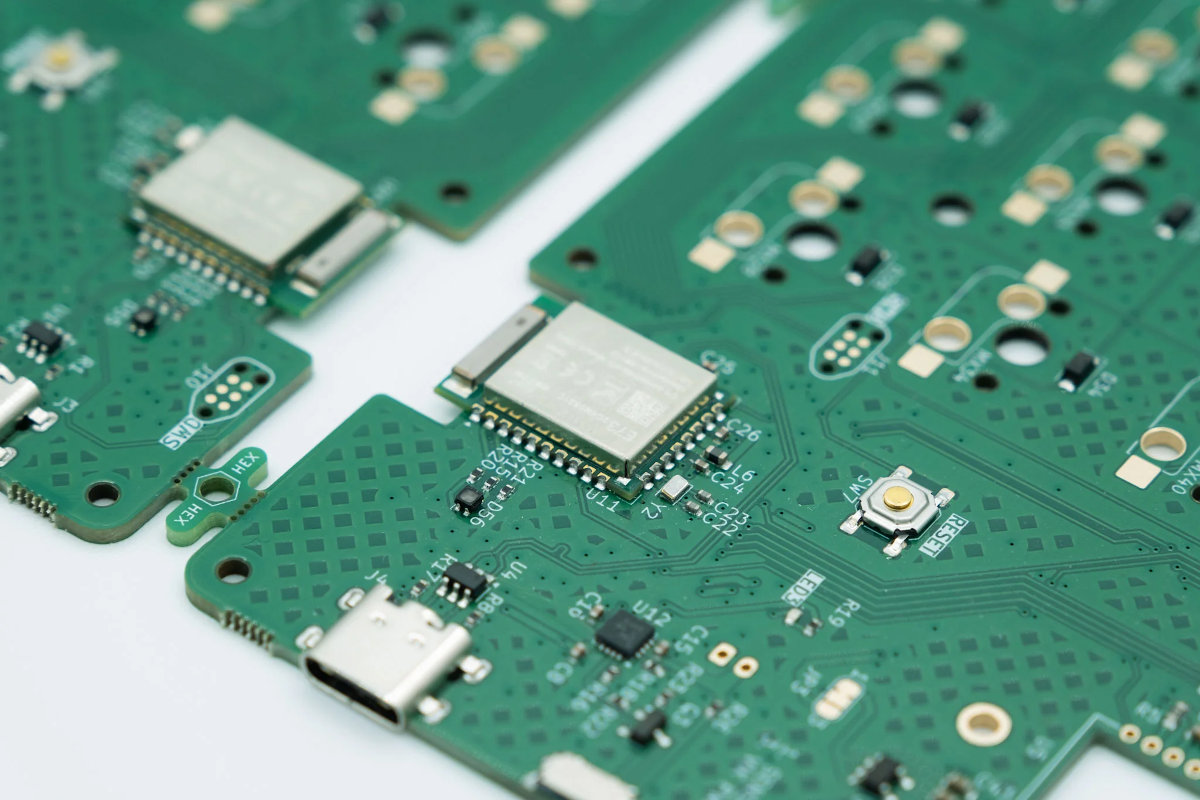

Vincent Franco (aka vinniefranco/timbetimbe) of ergokeyboards.com released the files of his Levels54 – a split 54-key dual-trackball wireless keyboard with VIK connectors and fully integrated MCUs.
I just released all the files for Levels54 (including the PCBs) I hope you enjoy spelunking through them and maybe it'll help you on your keyboard building journey – timbetimbe.
Features
- 54 keys (6x4+3 split)
- MX switches, hotswap
- integrated E73 wireless MCU
- VIK connector for extensibility
- 34 mm Perixx trackballs (PWM3610 sensors)
- 3D-printed case
- ZMK firmware
Resources
- https://github.com/Good-Great-Grand-Wonderful/levels54
- Levels54 product page at ergokeyboards.com
Published on Thu 7th May 2026. Featured in KBD #211.
