Shego75HE
Charading's Shego75HE, an open-source 75% Hall-effect keyboard, runs QMK.
Published November 24, 2025
Out of 150,000 readers, only 54 make this blog possible. Will you be one of them?

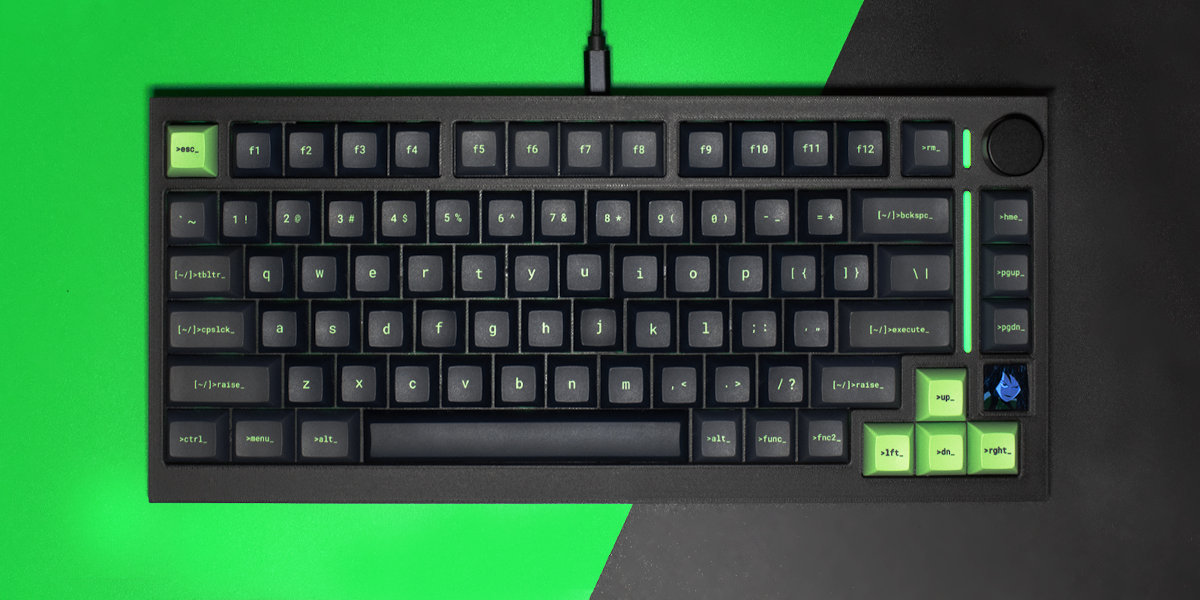

At first glance, fellow redditor Charading created a humble 75% keyboard. On the second look though, this custom keyboard comes with a unique combination of features, including custom QMK – for a Hall-effect board.
Probably the first magnetic keyboard running QMK firmware. […] I couldn't find a board that had every single feature I wanted so I just built my own. Took almost a year. I had basically no experience, learning as I went along – Charading.
After trying raw C, then Rust, the author ended up with using "normal" QMK firmware, although heavily modified to work with Hall-sensors. A drop-in module, that can make anyone able to use QMK for this purpose, is still in the works.
Specs
- exploded 75% layout
- HE switches, hotswap

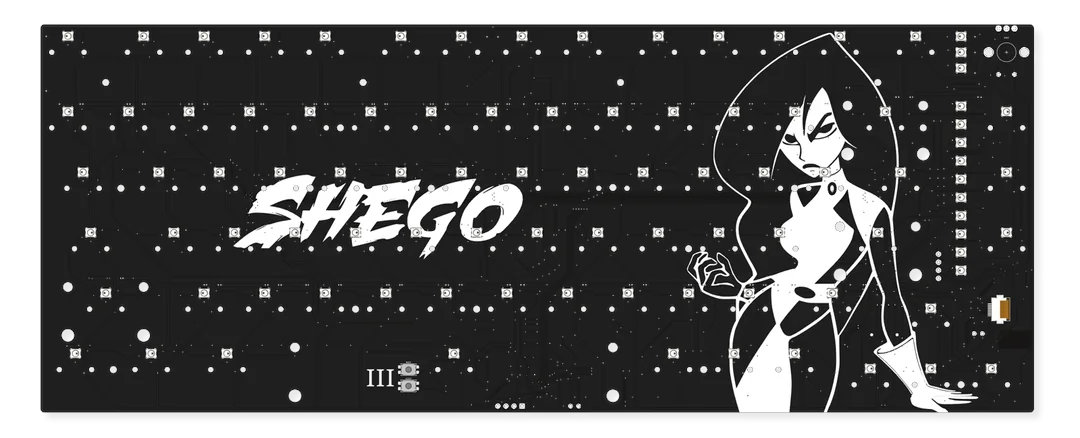

- on-board RP2040 MCU
- volume knob
- screen
- ambient lighting + north-facing per-key RGB
- QMK/VIA compatible
- 3D-printed case
Resources
Published on Mon 24th Nov 2025. Featured in KBD #202 (source).
