Chalk

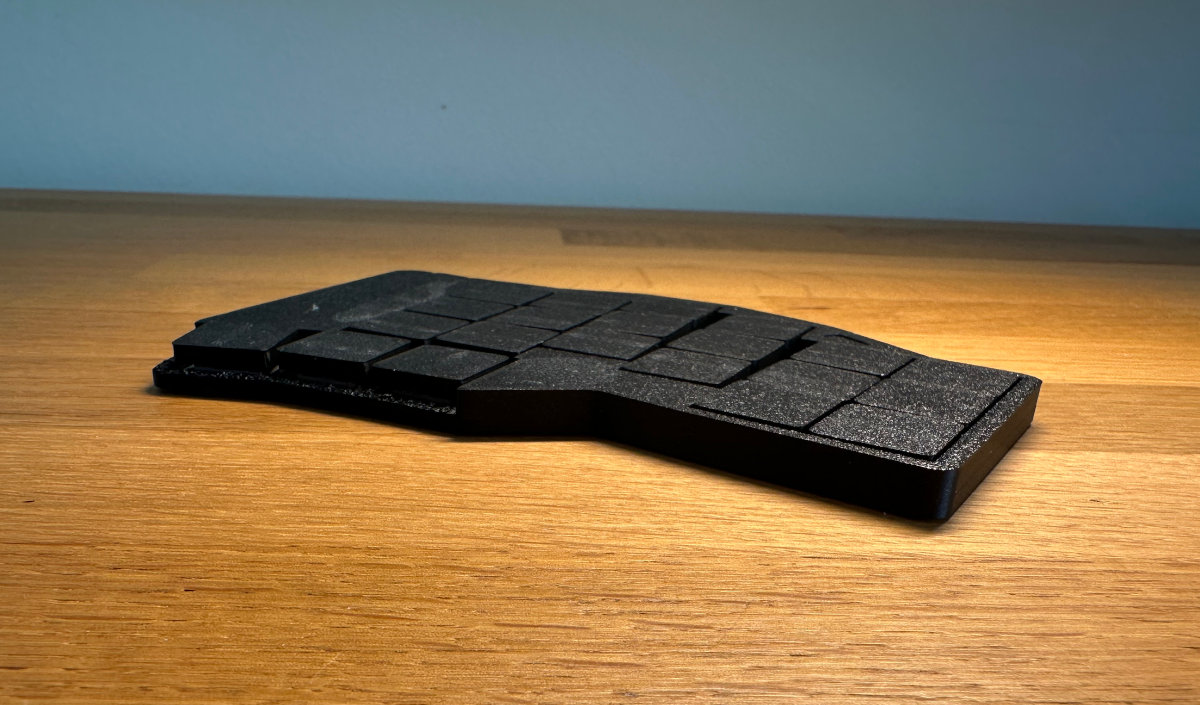

Chalk is a 42-key ultra-low profile keyboard with PG1316s switches, shared by eqlair.
Published September 9, 2025
Creators! Feel free to tip me off about your keyboard related projects to bring them to 150,000 readers.
Designed and shared by eqlair/vuoz, the Chalk is an ultra-low profile wireless split keyboard built around Kailh's PG1316s switches and XIAO controllers – following the author's somewhat similar but unibody Wingman project.
I am back with my second PG1316s board. A few weeks ago I announced my unibody PG1316s board, which was my first project around PG1316s switches. Now I am back to announce my second take on a PG1316s board. Here is a short overview of its features – eqlair.
Features
- 42 keys (6x3+3)
- ultra-low profile Kailh PG1316s switches (soldered)
- Seeed XIAO nrf52840 controllers
- 250mAh battery per half (battery life of up to 1.5monts on the master side)
- Totem-like pinky & ring splay
- 6.5mm overall thickness
- ZMK firmware with ZMK Studio support
Resources
Published on Tue 9th Sep 2025. Featured in KBD #198 (source).
