Paw 34

Another 34-key split, with a twist though. The modular Paw 34 by James Crosswell.

KBD.news
Published March 12, 2026
Creators! Feel free to tip me off about your keyboard related projects to bring them to 150,000 readers!

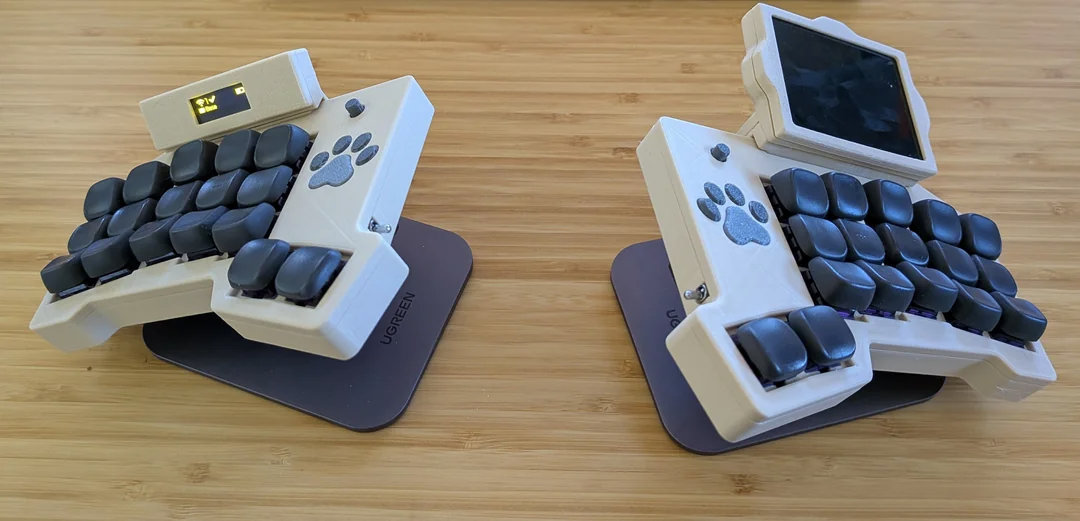

James Crosswell released his Paw, a 34-key wireless split keyboard with modular display and trackpad.

Essentially just another 34 key wireless split keyboard. However, at the top of the keyboard […] you can see a small plastic stopper, which is covering a 5 pin magnetic pogo connector – James.

The plastic cover hides a magnetic pogo connector with 5 pins, the last four of which should theoretically welcome any I2C device, with an OLED being the most obvious contender, but there's also a trackpad module.

Pic:

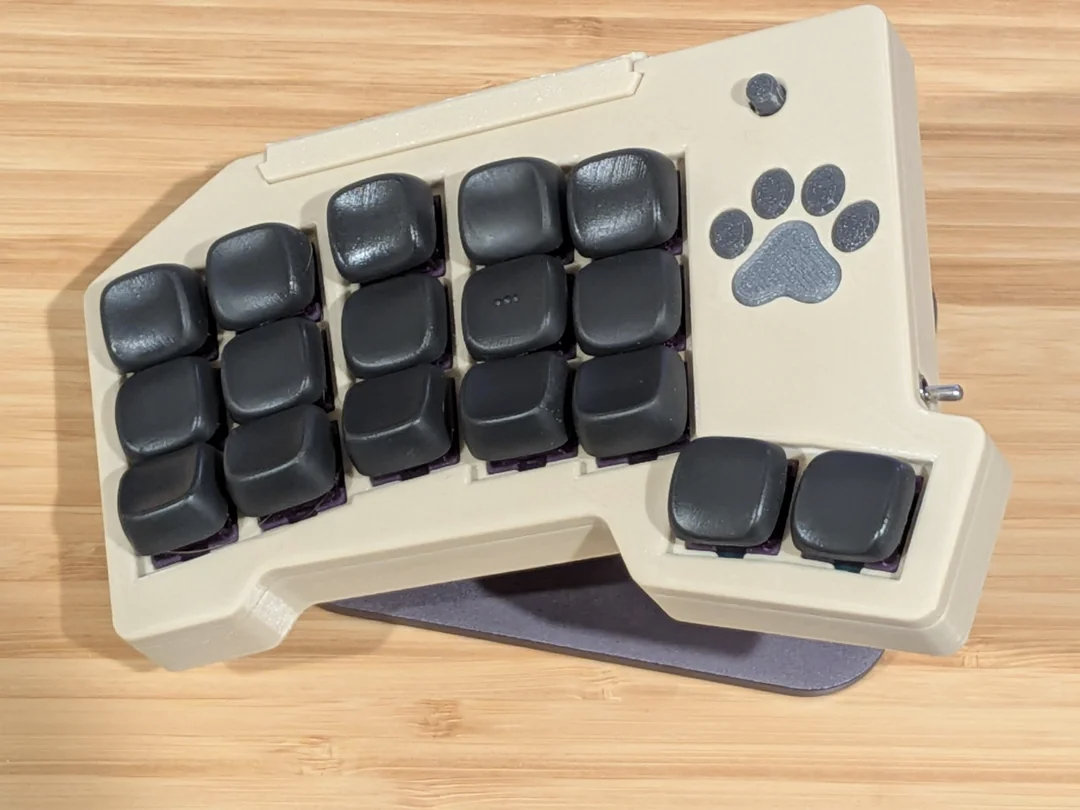

Features

  • 34 keys (5x3+2)
  • low-profile Choc V2 switches, hotswap
  • 17 mm vertical spacing
  • splay
  • nice!nano V2 controller
  • magnetic serial port for modules
  • optional display module (0.91” OLED)
  • optional trackpad module (Azoteq 65mm x 49mm trackpad)
  • 3D-printed case

Pic:

Resources
