Andrew Rudenko's rkbrd3 is a 3D-printed wireless parametric split with keywell.
Published June 11, 2025
Out of 150,000 readers, only 54 support this blog. Will you join MoErgo Glove80, BeaverKeys, and Micah Alpern?

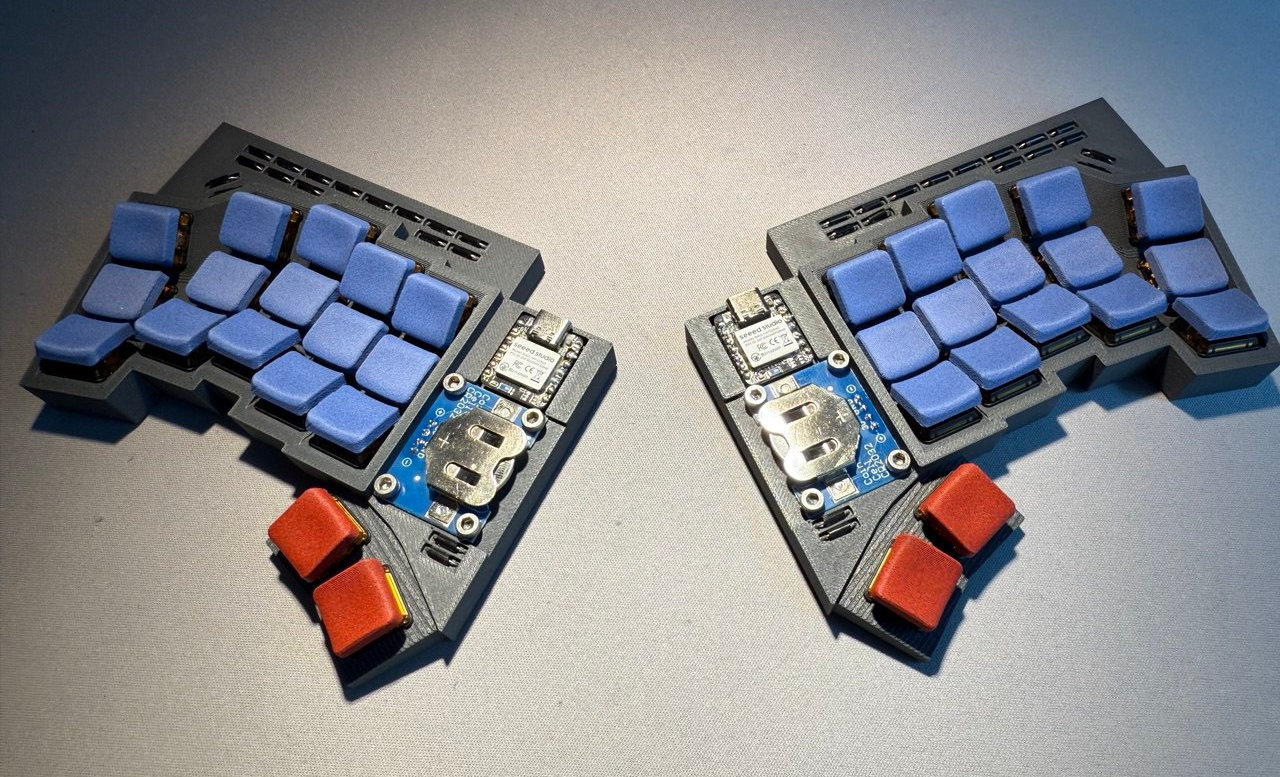

The rkbrd3, shared by Andrew Rudenko aka prepor, is a low-profile parametric 34-key wireless split keyboard with – a case model featuring splay and optimized for wire wrapping.
Every hand is unique. The simple implication is that no keyboard fits all hands perfectly. A keyboard should either be mechanically customizable (see Svalboard) or tailored specifically to an individual's hand. With this keyboard, I'm sharing not only STL files for a ready-to-print version, but also a CAD model that can be customized via various parameters to achieve the most comfortable layout for your hand – prepor.
For instance, the author has relatively small fingers, so he uses a tight key spacing (17 mm). Others may find different spacing, concavity, and splay settings more comfortable.
Specs
- 34 keys (5x3+2)
- Chocs witches
- XIAO BLE nRF52840 controllers
- 3D-printed case with keywell
- LPX keycaps by levpopov
Optimized for wire wrapping, but perfectly fine for "classic" handwiring too.
Resources
Published on Wed 11th Jun 2025. Featured in KBD #192 (source).
